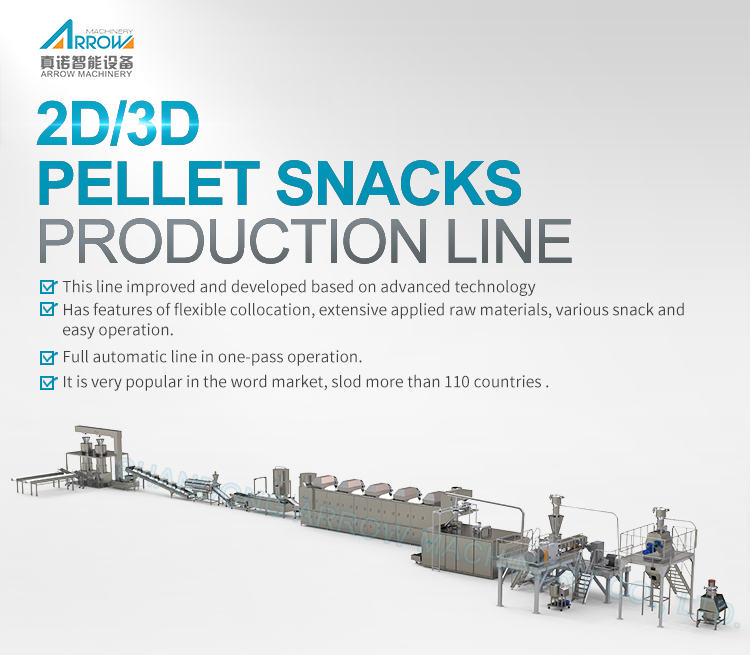

ARROW MACHINERY Industrial 2D/3D Pellet Snacks Production Line

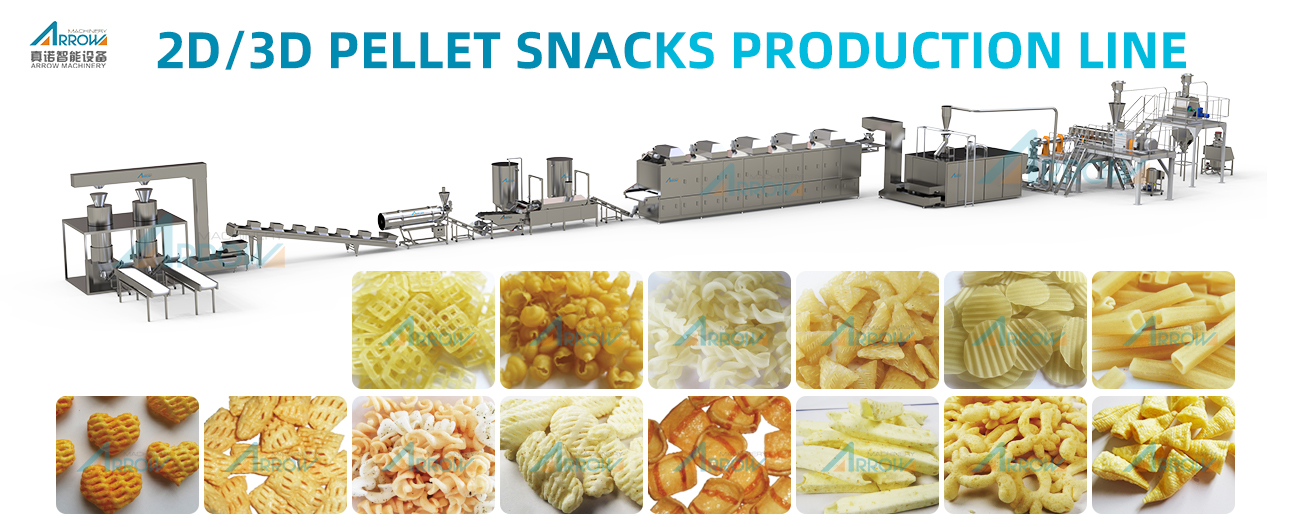

ARROW MACHINERY manufactures fully automated 2D/3D pellet snacks production lines engineered to process potato starch, corn starch, cassava starch, and wheat flour into high-quality 2D flat and 3D compound snack pellets. Powered by precision twin-screw or single-screw cooking extruders and specialized embossing forming machines, the system produces a wide array of shapes including 3D cones, web chips, shell snacks, heart shapes, and animal figures.

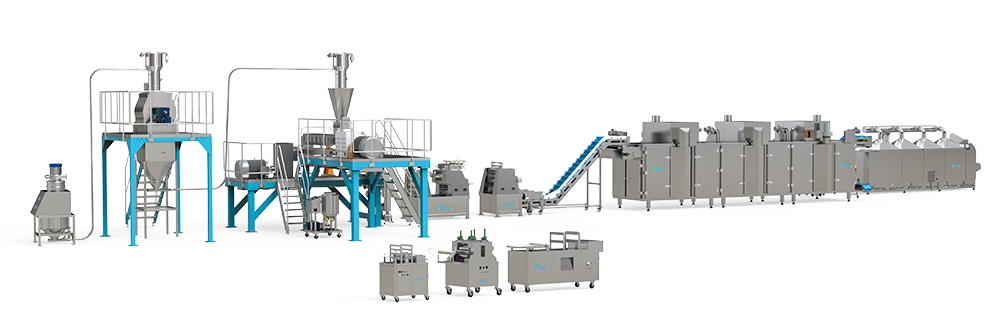

Designed for modern snack food manufacturers, this versatile processing plant seamlessly integrates raw material mixing, extrusion cooking, compound sheet forming, continuous pre-drying, deep drying, high-expansion frying, rotary drum seasoning, and ambient cooling to maximize production yield and deliver exceptional crispiness.
Flow Chart

Mixing → Extruding → Forming → Pre-drying → Drying →Frying → Seasoning → Cooling
Stage Details:
1. Mixing: Accurately weigh potato starch, corn starch, wheat flour, water, and formula ingredients, blending them in a high-speed ribbon mixer to achieve uniform moisture absorption and dough consistency.
2. Extruding: The hydrated mix enters the extruder, where controlled heat, high pressure, and mechanical shear thoroughly gelatinize starches into a continuous, dense dough ribbon.
3. Forming: The cooked dough ribbon immediately passes through precision embossing rollers and rotary cutting dies to stamp, pinch, and cut out 2D flat or 3D hollow snack shapes.
4. Pre-drying: Freshly cut raw pellets pass into a continuous pre-dryer to rapidly remove surface moisture, preventing pellets from sticking together or clumping.
5. Drying: Pre-dried pellets enter a multi-tier continuous main drying oven for long-time, low-temperature drying to lower moisture content to 8%–10%, forming stable, translucent semi-finished pellets.
6. Frying: The dried snack pellets are conveyed into a continuous deep fryer with automatic oil temperature control, expanding instantly into crisp, golden expanded snacks.
7. Seasoning: Hot fried snacks enter a continuous rotary drum, where liquid oil spray and flavor powders (cheese, BBQ, chili, salt) are applied uniformly over all surfaces.
8. Cooling: Seasoned hot snacks pass over a counter-flow cooling conveyor to lower the product temperature to ambient levels before packaging, locking in crispness and preventing moisture condensation inside bags.
Specifications
| Model | Power | Capacity |
| AYE65 | 55kw | 100-200kg/h |
| AYE78 | 90kw | 200-300kg/h |
| AYE98 | 280kw | 300-500kg/h |
The capacities listed in the parameter table represent standard reference outputs based on starch formulations. The line can be configured either as a complete end-to-end processing plant or up to the drying stage for producers who sell semi-finished snack pellets (3D pellets). Contact ARROW MACHINERY engineers for custom heating options (electric, gas, diesel, or thermal oil) and layout designs.

ARROW MACHINERY provides complete end-to-end engineering support for 2D/3D pellet snack manufacturing plants, including:
• Starch formulation testing and pellet expansion ratio analysis.
• Custom embossing roller and rotary cutting die mold design for unique regional snack shapes.
• Integrated factory floor layout planning, oil exhaust systems, and energy-saving heat exchanger designs.
• On-site equipment installation, system commissioning, operator training, and long-term spare parts supply.
Certificate

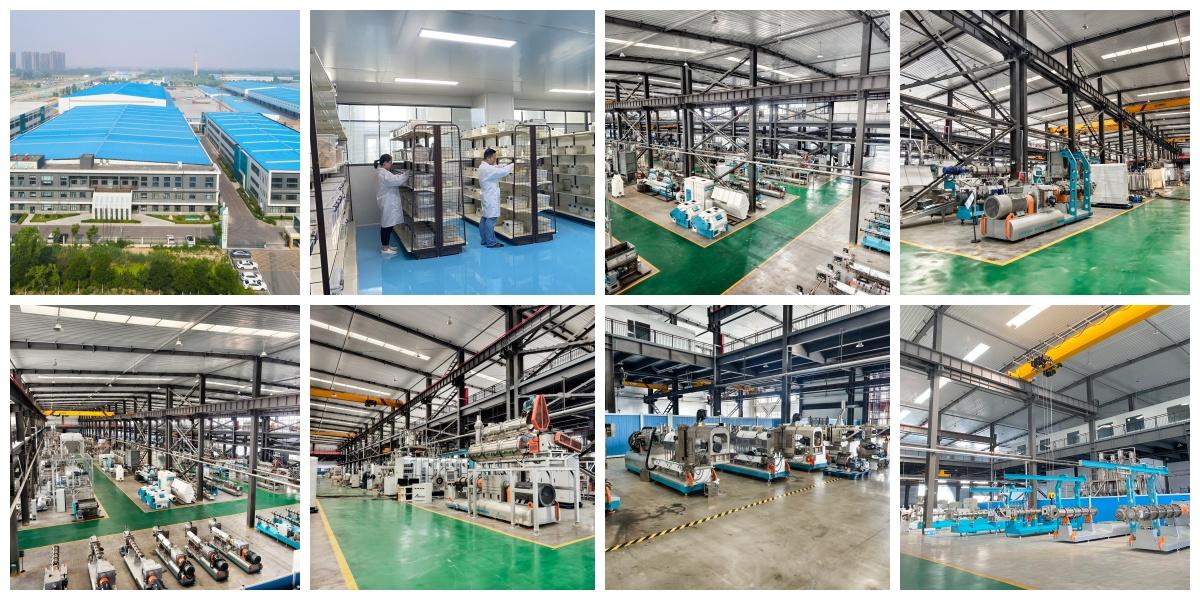

Company Introduction
Shandong Arrow Machinery Co., Ltd. is a Chinese manufacturer of food processing equipment. We specialize in the research and development and manufacturing of various extended food processing machinery and baking snack machinery. Our mechanical design and technical departments consist of experienced engineers and food production equipment designers. Our products include light meat processing machinery, animal food processing machinery, food extruders, etc.

FAQ
Q: What is the main difference between 2D and 3D pellet snacks?
A: 2D pellets are flat or wave-shaped single-layer chips (e.g., sheet chips, net chips). 3D pellets are hollow, multi-layer, or volumetric shapes (e.g., 3D bugles, hollow pillows, heart cones) created using double-layer embossing and pinching rollers.
Q: Can this production line sell semi-finished pellets directly?
A: Yes. Many snack manufacturers stop the process at the drying stage. The dried pellets (moisture 8%–10%) have a long shelf life of up to 12–24 months and can be packaged and sold to regional food processors for local frying and seasoning.
Q: What are the main raw materials used for 2D/3D pellet snacks?
A: Potato starch, corn starch, cassava/tapioca starch, wheat flour, and potato flakes are the most common raw materials, often blended for controlled texture and expansion.
Q: Why are two drying stages (Pre-drying and Main drying) necessary?
A: Pre-drying quickly removes surface moisture to prevent freshly cut wet pellets from sticking together in clumps. The main drying oven slowly lowers internal moisture under controlled temperatures to ensure uniform cell expansion during frying.
Q: What heating sources are available for the main dryer and fryer?
A: We offer electric heating, natural gas burners, diesel heating, and thermal oil circulation systems to match your plant’s local energy infrastructure.
Q: How do I request a technical proposal and quotation?
A: Please share your target hourly production capacity (kg/h), preferred snack shapes/pictures, raw material selection, and factory floor dimensions. ARROW MACHINERY engineers will provide a customized technical proposal and layout design.
