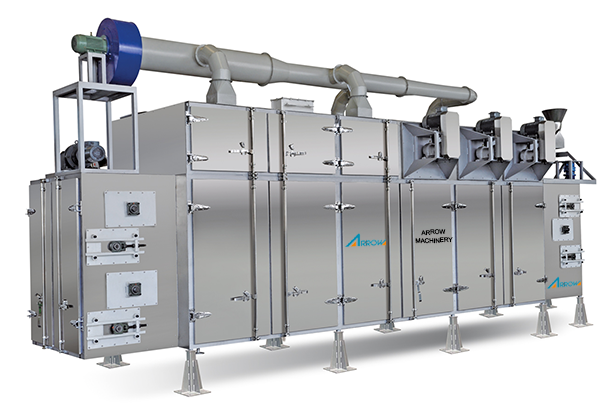

Three-tier six-meter cross circulation oven

2021-10-21 11:23:22

Share to:

Output: 500-1000kg/h
Scope of application: drying of granular, flake and strip materials in the feed and food industries
Heating method: steam, gas optional
Material: frame carbon steel, material contact 304 stainless steel, stainless steel insulation board
Power: 3kw*4 fans, 2.2kw drive motor, 1.5kw exhaust fan, 0.55kw cloth motor, 0.55kw slag discharge motor
The control system uses brand-name electrical components: Taiwan Delta inverter, Omron relay, South Korea LG air switch, Japan Fuji AC contactor

Features:
1. High drying efficiency and energy saving: Effectively solve the problem of maturation and drying of extruded aquatic feed and general pellet feed or food. The pellets achieve ideal water resistance and improve the appearance quality of pellets; internal circulation hot air system, low energy consumption and cost Small and reliable.
2. Cross circulation, side blowing, high drying efficiency and good heat preservation performance.
3. Separate dehumidification fan, fast dehumidification speed.
4. The cargo-type insulation door is easy to open, easy to clean, and has good sealing performance.
5. High temperature resistant silicone sealing strip, good airtight and heat preservation performance, and strong anti-aging ability.
6. Frequency conversion control, drying and conveying speed and time are adjustable.
7. The output can be increased according to the output.
8. The upper heating box, steam heating, safe and reliable, and the upper heating box, to avoid dust accumulation and cause fire.
9. Equipped with automatic cleaning device, centralized collection of slag, easy to clean.
